Cooperation History: From Initial Trial to Deep Trust

• March 2025 — First Purchase
• January 2026 — Second Repeat Purchase

Customer Visit to China Factory

The customer arranged a team to visit our production base in China for on-site inspection and in-depth tour:

• IGBT Power Module Aging Test Workshop
• High-Frequency Transformer Winding and Nanocrystalline Core Assembly Line
• 72-Hour Full-Load Aging Test Area
• Tin Plating Application Simulation Test Laboratory

8000A 36V Air-Cooled Rectifier Technical Highlights

1. IGBT High-Frequency Switching Technology, Significant Energy Savings

Utilizing imported high-power IGBT modules as the main power devices, coupled with ultra-microcrystalline (nanocrystalline) soft magnetic alloy transformer cores, the overall efficiency is ≥90%, saving 15%-30% of electricity compared to traditional thyristor rectifiers. For high-power equipment at the 8000A level, long-term operation can save customers considerable electricity costs.

2. Intelligent Air-Cooling System, Adaptable to Southeast Asian Climate

Targeting the high-temperature, high-humidity, and salt-spray industrial environments of Vietnam and Southeast Asia, this machine adopts:

• Temperature-controlled intelligent fan: Automatically adjusts fan speed based on internal temperature, reducing energy consumption and noise.
• Anti-salt-spray acidification treatment: Circuit board conformal coating + anti-corrosion sheet metal casing.
• Independent air duct design: Ensures uniform heat dissipation for IGBT modules and transformers, supporting full-load operation at 45℃ ambient temperature.

3. Dual Closed-Loop Control, Guaranteed Plating Quality

The main control system adopts multi-loop control technology to achieve:

• One-button switching between constant current and constant voltage modes
• Output fluctuation <1% during load changes
• Stable current density during tin plating, avoiding “burning” or “dendritic” deposition defects.

4. Fully Digital Display and Intelligent Communication

• Real-time display of voltage, current, power, and running time.
• Supports RS485/Modbus protocols, allowing integration with customer’s central PLC system.

Frequently Asked Questions

Q1: What plating types is the 8000A 36V air-cooled rectifier suitable for?
A: This rectifier specification is mainly used in tin plating production lines, and is also suitable for electroplating processes such as nickel, copper, zinc, and chromium plating, as well as surface treatments such as anodizing and electropolishing.

Q2: Can the air-cooled rectifier operate stably in the high-temperature environment of Vietnam?
A: Yes. Our air-cooled rectifiers are designed for ambient temperatures ranging from -20℃ to +45℃, with a protection rating of IP54. The entire unit undergoes anti-salt spray and anti-acidification treatment, making it fully adaptable to the humid and hot industrial environment of Vietnam and Southeast Asia.

Q3: How much energy does the 8000A36V air-cooled rectifier save?
A: Utilizing IGBT high-frequency switching technology, the overall efficiency is ≥90%, saving 15%-30% of electricity compared to traditional thyristor rectifiers. Taking an 8000A36V (288kW) unit as an example, based on 20 hours of operation per day, the annual electricity cost savings can reach tens of thousands of yuan.

Q4: Does the rectifier support remote monitoring and PLC linkage?
A: Yes. Equipped with a standard RS485 communication interface, compatible with Modbus protocol, it can seamlessly connect to the customer’s PLC control system to achieve remote start/stop, parameter adjustment, fault alarm, and data acquisition.

Q5: How long does it take from order placement to delivery to Vietnam?
A: The production cycle for a standard 8000A36V air-cooled rectifier is approximately 15-20 working days. Shipping to major Vietnamese ports (Ho Chi Minh City/Haiphong) takes approximately 7-10 days, with an overall delivery cycle of approximately 25-35 days.

Q6: How does the ripple coefficient of a tin-plated rectifier affect the plating quality?
A: The lower the ripple coefficient, the purer the DC output, and the denser, brighter, and less porous the plating. Our high-frequency rectifiers have a ripple coefficient ≤1%, far exceeding industry standards, significantly improving the corrosion resistance and solderability of the tin plating layer.

Get a Quote or Technical Consultation

If you are looking for rectifiers or need customized electroplating power supplies, please contact us for detailed technical solutions and quotations.

⚡ Liyuan Haina Rectifier

Professional Manufacturer of IGBT and SCR Rectifiers

Our products are widely used in surface treatment, including electroplating rectifiers, anodizing rectifiers, electrophoretic rectifiers, and plasma plating rectifiers.

Among them, our electroplating rectifiers are extensively utilized for PCB electroplating, hard chrome coating, copper/nickel/zinc plating, and precious metal plating with gold and silver — delivering reliable power solutions for diverse hardware surface treatment applications.

📧 CONTACT US

The post A Vietnamese customer has repurchased 8000A 36V air-cooled rectifiers appeared first on Electroplating Surface Treatment.

Related Products Used by the Customer in This Application Case

• 1500A 12V IGBT Rectifier for Nickel Electroplating
• 12V 500A Air Cooled Rectifier for Electroplating Line
• 20A 150V IGBT Nickel Plating Rectifier

So, What Exactly Does an Electroplating Rectifier Do, and Why Get Picky About It?

An electroplating rectifier takes AC mains power and converts it into controlled DC—that DC is what drives the metal deposition process for nickel, chromium, zinc, copper, or whatever coating a job calls for. It’s easy to overlook the rectifier as just another piece of support equipment, but its quality reaches into every part of the operation. Coating uniformity depends on ripple and current stability—if those aren’t tight, thickness varies across the rack. Energy efficiency matters more than ever, and the newer IGBT and SMPS topologies are cutting losses by 15–30% versus the old iron-core transformer units that still populate a lot of shops. Process reliability ties directly to stable DC output; when that drifts, you start seeing burned edges, pitting, or adhesion that fails post-plate testing. And operational cost gets hit from two angles—higher efficiency trims the utility bill, and longer intervals between service calls mean less downtime and fewer spare parts sitting in inventory.

What a lot of production managers don’t realize until they run the numbers is that in a high-volume environment, even tightening current stability by just 1% can shave a meaningful chunk off material waste and reject rates across a full year.

What They Were Up Against: Finding Something That Actually Beat the Local Options

India’s electroplating sector has been on a solid growth run—automotive, electronics, hardware, decorative finishing, you name it. But the local rectifier suppliers servicing this market come with some recurring problems that anyone who’s run a plating line knows all too well. Ripple often exceeds 5%, which throws coating thickness off from one rack to the next. Voltage regulation tends to get shaky when the load changes—especially during bath loading and unloading, when the current draw shifts abruptly. After-sales support is thin on the ground; getting a technician out or tracking down a specific spare part can take days, and that’s downtime nobody wants. And a lot of local offerings still lean on older transformer-based designs, so energy consumption is higher than it should be.

This client—an operation with several production lines, big enough to have a proper engineering team on staff—had already been through all of that with their previous local equipment. By late 2025, they’d kicked off the formal procurement process to upgrade 12 plating lines with something that could deliver real industrial-grade precision without blowing the total cost of ownership out of proportion.

Where These Units Pull Ahead of What’s Available Locally

IGBT Switching Instead of Old-School Transformer Rectifiers

A lot of the rectifiers you still see on shop floors in India are conventional transformer-rectifier types—bulky, slow to respond, and not particularly efficient. These new units use high-frequency IGBT switching, and the differences showed up immediately during commissioning. Response to load shifts is much faster, so the bath current doesn’t dip or spike when parts go in or come out. The whole package is more compact—they actually freed up some floor space on each line, which wasn’t a primary goal but turned out to be a nice bonus. Conversion efficiency came in above 90%, which their engineering team verified independently with their own clamp meters during the initial power-up tests. And heat dissipation is significantly lower, so the cooling fans aren’t running at full tilt all shift long, and the area around the rectifier racks stays noticeably cooler.

Closed-Loop Digital Control with PID

The control architecture is built around a microprocessor running closed-loop PID regulation. For the operators on the floor, that means current and voltage self-adjust in real time without someone standing there tweaking knobs every time a new rack goes in. They can also program ramp-up and ramp-down profiles to suit different bath chemistries and part geometries—especially useful when they’re switching between decorative chrome and functional hard chrome jobs. The onboard data logging has been another practical benefit; they’re pulling records for internal quality audits and can show customers a documented process trail when asked.

Designed to Survive Indian Shop Floor Conditions

If you’ve spent any time inside an Indian electroplating facility, you know the environment is brutal on electronics—high ambient temperatures, humidity that never seems to drop, and corrosive fumes hanging in the air. These rectifiers were spec’d with that in mind. IP54 enclosures with anti-corrosion coating are standard. The thermal management system is intelligent and includes redundant cooling—if one fan fails, the other ramps up automatically, which gave their maintenance team one less thing to worry about during night shifts. And the control boards are sealed against vapor ingress, a specific concern they flagged early in the discussions.

Remote Monitoring via Modbus

RS-485 with Modbus RTU comes built into these units, so they tied them straight into the factory’s existing SCADA system. From the office, they can now pull live production data without walking the floor. More importantly, the system generates predictive maintenance alerts—things like temperature creep or output drift that might otherwise go unnoticed until a batch gets rejected. And our technical team can run remote diagnostics when something looks off, which has saved a couple of site visits already.

Frequently Asked Questions (FAQ)

What kind of ROI do shops typically see when moving from a local rectifier to a higher-efficiency unit?

Across the facilities we’ve worked with, payback usually lands somewhere between 12 and 18 months. The savings stack up from three places: energy consumption drops 15–20%, rework rates come down 10–25% because the coating is more consistent, and maintenance intervals stretch out because there’s less thermal stress on components. The actual window depends on shift hours and local electricity rates, but we haven’t seen a case yet where it stretched beyond two years.

How long is the standard warranty on these industrial electroplating rectifiers?

12 months from commissioning, which is pretty standard for this class of equipment.

Will these rectifiers hold up in Indian summer heat?

Yes—with standard forced-air cooling, they’re rated for ambient temperatures up to 45°C. For facilities that regularly see higher than that—and we’ve worked with a few—there are enhanced cooling packages and tropical-grade component upgrades available.

Which communication protocols are supported for tying into factory systems?

Out of the box, they ship with RS-485 and Modbus RTU. If a facility runs on Profibus or Ethernet/IP instead, those are available as optional add-ons—just need to specify at order time.

Why does output ripple matter so much for plating quality?

If ripple climbs above 3%, it disrupts how ions deposit across the part surface. That translates into thickness variation from one side of a rack to the other, weak adhesion in random spots, and higher porosity in the finished coating. These units hold ripple below 1%, which their quality team has already confirmed shows up as a measurable drop in rejects per shift.

Ready to upgrade your electroplating rectifiers?

Get in touch with our engineering team for a no-cost technical consultation and a customized spec sheet built around your specific lines and production mix.

How to Get Your Electroplating Rectifier Quote – Have These Ready

• Input power (voltage, phase)
• Output requirements (voltage, current, power rating)
• Rectifier type (DC, pulse, programmable, etc.)
• Control and monitoring preferences
• Cooling method
• Size and installation constraints
• Safety and compliance needs
• Budget range

Are you interested in one of our products? Please use our inquiry form or leave a message, and we’ll respond within 24 hours.

Related Industrial Resources

• High-Frequency Switching Power Supply
• IGBT Rectifier
• SCR Rectifier

The post Case Study: 12-Rectifier Upgrade Delivers Tighter Current Control and Lower Maintenance for Indian Plating Facility appeared first on Electroplating Surface Treatment.

This Indian customer applied the rectifiers to brass plating tanks and cyanide copper plating processes. Customer feedback indicates that our rectifiers feature advanced automatic sensing capabilities: when the plating rack is removed from the tank, the equipment automatically cuts off the current output; and when the rack is reinserted, the current reading immediately resumes and normal operation begins. This intelligent design effectively improves operational safety and avoids process risks caused by misoperation.

“The rectifiers are amazing,” the customer stated in a communication, “Your machine seems better than what type of IGBT made locally.”

In the future, we will continue to uphold the philosophy of “technological leadership and superior quality,” providing global customers with more efficient and intelligent electroplating power supply solutions.

If you have any needs for rectifiers, please contact us.

The post Feedback from an Indian Customer Using Surface Treatment Rectifiers appeared first on Electroplating Surface Treatment.

This electroplating rectifier boasts a high current output capacity of 2000A, providing ample DC power with extremely low ripple coefficients for aluminum wire electroplating, ensuring the stability of electroplating quality from the source.

It employs a closed-loop circulating water cooling technology, offering extremely high heat dissipation efficiency and perfectly adapting to Indonesia’s high-temperature environment. This not only ensures the long-term stability of the equipment under full load operation but also achieves a clean production environment with low noise and no dust intrusion.

The built-in sophisticated digital control system allows for easy setting and monitoring of operating parameters. The equipment features multiple safety protection functions covering overcurrent, overvoltage, overheating, and water shortage scenarios, ensuring protection for equipment and operating staff.

Following its delivery and commissioning in October 2025, the customer reported excellent performance of the electroplating rectifier during operation.

Additionally, the customer shared images of electroplated aluminum wire produced using the system, clearly displaying the fine, uniform, and bright plating layer achieved through stable power supply.

The post Feedback from an Indonesian Customer on the Electroplating Rectifier appeared first on Electroplating Surface Treatment.

Following complete parameter configuration and system debugging, real-time performance monitoring via the HMI interface confirms stable operation across all stages. Key validation tests demonstrated normal current distribution on both sides of the copper bath panels, unequivocally affirming the superior capabilities of the pulsed rectifiers. The system is now concluding its trial electroplating phase and is poised to commence full-scale production.

In their feedback, the customer emphasized: “All rectifiers are operating optimally with fully configured parameters and normal current test results. The pulsed rectifiers are performing exceptionally well. We greatly appreciate the robust technical support provided by the Liyuan Haina team.”

This successful collaboration underscores the outstanding strengths of Liyuan Haina’s pulsed power supply products in delivering unmatched stability, precise control, and intelligent operation. The company remains dedicated to providing world-class products and expert services to empower global customers with efficient and reliable industrial electroplating solutions.

The post Indian PCB Manufacturer Lauds Liyuan Haina’s Pulsed Power Supply for Superior Performance in Electroplating Line appeared first on Electroplating Surface Treatment.

Their initial order for our 600A15V plating rectifier yielded exceptionally positive feedback. The rectifier’s performance and reliability have been key to maintaining the quality and consistency of their electroplating processes. Built with advanced technology, our rectifiers deliver high-precision current control—essential for uniform, high-grade plating results.

Notable features:
» Current Management: Enables even metal deposition and a flawless final surface.
» Unmatched Stability: Provides consistent output, reducing downtime risks.
» Energy Optimization: Lowers power consumption, cutting operational costs.
» Intelligent Control Systems: Supports exact current/voltage tuning for process refinement.

Convinced by the rectifier’s consistent high performance and proven reliability in real-world production, the client has proactively expanded their order to systematically replace legacy equipment. This strategic upgrade will not only enhance production line efficiency and output volume but also reinforce their competitive edge as an industry leader.​

The post How Our Plating Rectifier Helped a German Leader Upgrade Legacy Equipment appeared first on Electroplating Surface Treatment.

The AC input voltage is filtered by the transformer and rectifier circuit to get the high voltage DC, and the high voltage DC is chopped by the BUCK chopper circuit to get the required output voltage. The control circuit samples the output voltage and output current, and produces a pulse width modulation (PWM) signal to control the BUCK circuit after closed-loop feedback, so as to keep the output voltage or current stable.

This Plasma Coating Rectifier Project implementation demonstrates China’s advancements in precision power supply technology, particularly for surface engineering applications requiring strict control of coating thickness and quality. The robust design has been successfully applied in domestic PVD coating production lines, showing 97% operational reliability in continuous industrial environments.

The post Advanced Plasma Coating Rectifier Solutions in China appeared first on Electroplating Surface Treatment.

Project engineers particularly valued the system’s 94% energy conversion efficiency, delivering substantial power savings for continuous electrolysis operations. The ergonomic local control interface enables real-time voltage adjustments with ±0.1V precision during chromium deposition, ensuring coating uniformity. An isolation cooling system specifically engineered for Southeast Asian conditions received certification from Thailand’s Industrial Research Institute. Its patented airflow duct design physically separates cooling air from electronic components, effectively resisting corrosion from acidic aerosols in plating workshops. Operational data confirmed this innovation extends maintenance intervals for power modules to 6,000 operating hours, cutting unplanned downtime by 30% compared to conventional systems.

The equipment portfolio features scalable power configurations:

– TBFB-250A/20V (0-20VDC, 250A) for precision plating

– TBFB-500A/12V (0-12VDC, 500A) optimized for medium-thick coatings

– TBFB-1000A/15V and 2000A/15V units supporting automotive component mass production

Post-implementation monitoring revealed enhanced operational stability in Bangkok’s tropical climate, with rectifier temperature rise maintained at ΔT ≤35℃ – exceeding industry benchmarks. The modular architecture reduced power expansion downtime by 40% during capacity upgrades. This implementation establishes a technical reference model for electroplating equipment selection across Southeast Asia.

The post Metal Plating Project in Thailand appeared first on Electroplating Surface Treatment.

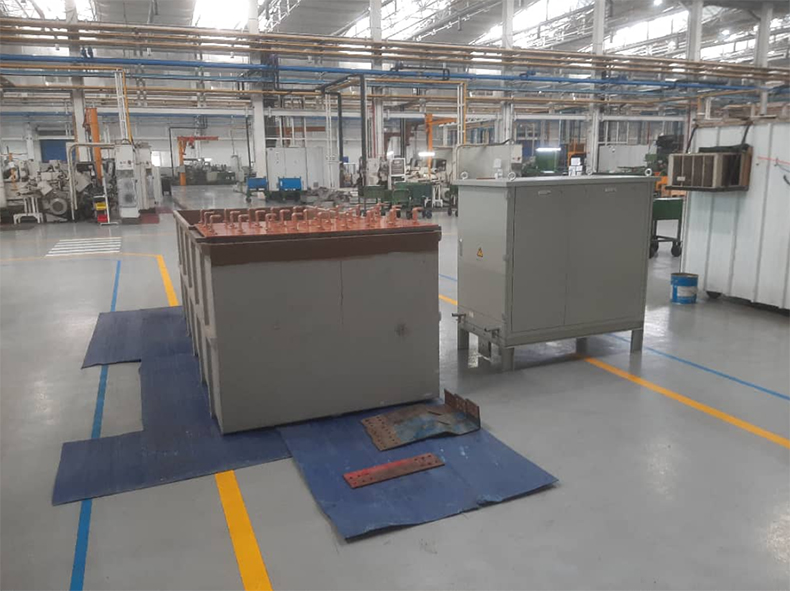

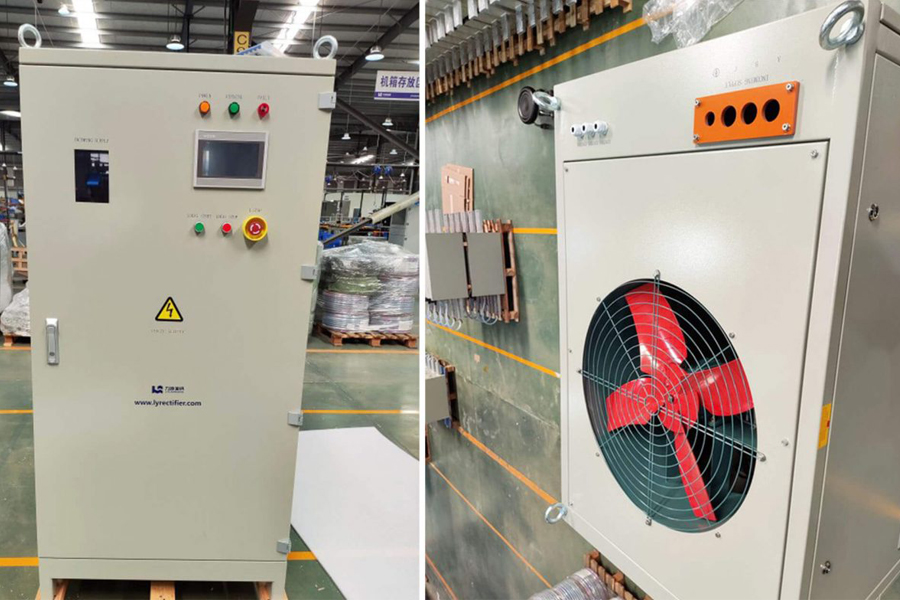

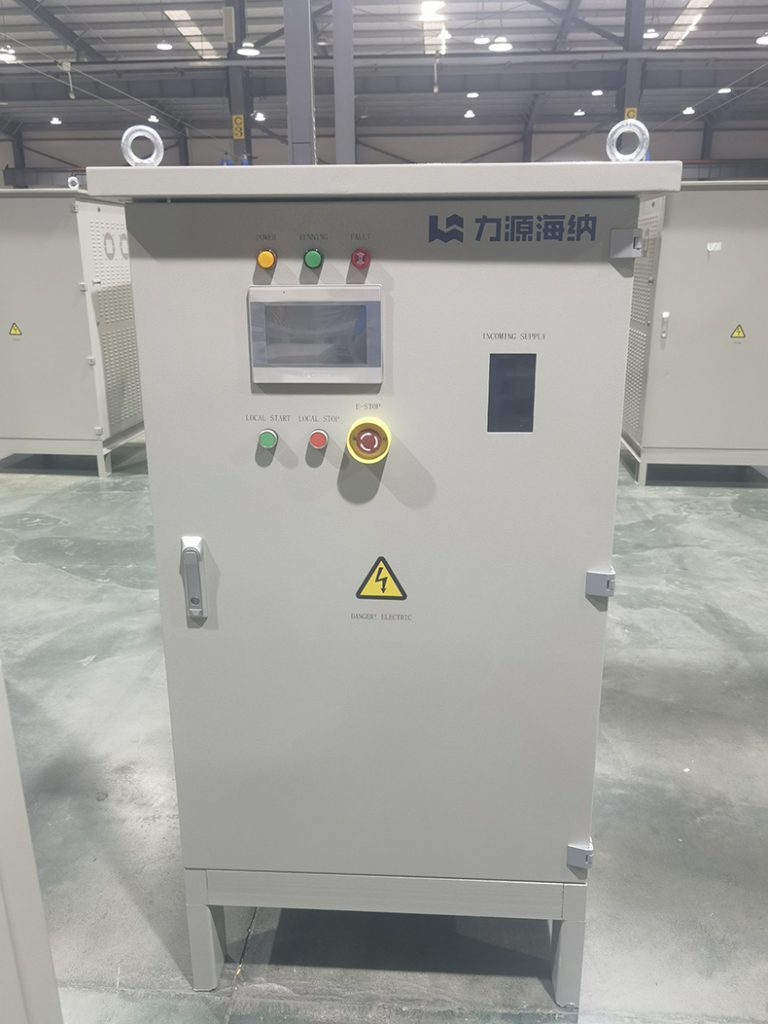

The rectifier of this project is used for electrophoretic spraying ​in Iran. according to the customer’s usage environment and requirements, it is more suitable to adopt SCR design for high voltage, with the top air outlet to reduce the environmental dust into the rectifier and improve the power supply resistance. It has perfect protection functions such as phase failure, over-voltage, over-current, overheating, short circuit, etc. Meanwhile, it adopts unique sealing and sealing channel design to ensure that the equipment can work for a long time under the harsh environment with full load.
To meet the ​Electrophoretic Coating in Iran process requirements, the DC output is equipped with filter reactor and capacitor, so that the ripple coefficient index reaches the requirement of painting process, and the voltage of Tiven wave can make the paint film on the metal surface with dense structure, even thickness, smooth surface and strong adhesion.

The post Electrophoretic Coating in Iran appeared first on Electroplating Surface Treatment.

Technical Specifications:

– Output current: 0~500A

– Output voltage: 0~12V

– Cooling method: Air cooling

– Control interface: RS485 communication protocol

Developed using Liyuan’s IGBT rectifier technology, this Dubai-based electroplating rectifier solution achieves 94% operational efficiency through advanced semiconductor design and optimized thermal management. The precision-engineered unit ensures stable current delivery with <3% ripple factor, maintaining ±1% voltage regulation accuracy for consistent coating quality.

This tailored solution addresses critical production requirements through:

1. Energy-efficient operation reducing power consumption

2. Adaptive control for varied plating workloads

3. Maintenance-friendly modular architecture

4. Real-time monitoring through digital interfaces

The implementation in Dubai demonstrates how modern rectifier technology enables cost-effective metal finishing operations while meeting strict quality standards. The system’s robust performance in high-temperature environments particularly suits the regional climatic conditions, ensuring reliable zinc deposition across continuous production cycles.

The post Zinc Electroplating Rectifier Solution for Dubai Industrial Application appeared first on Electroplating Surface Treatment.
